Core Drilling — Sydney & NSW

Core Drilling

Clean, accurate core holes through concrete and masonry.

Sydney Town Hall
Slurry Controlled, Clean Sites
No Job Too Big or Small
Sydney & All NSW

Clean, Accurate
Core Holes

Core drilling creates clean, accurate circular holes through concrete and masonry: suspended slabs, walls, columns and structures of any age. Fast setup, tidy work, minimal disruption to your site.

  • Mechanical & HVAC penetrations
  • Electrical & comms conduits
  • Plumbing & drainage
  • Stormwater pipes
  • Structural openings & fixings
  • Core sampling & strength testing
Need Cores for Lab Testing? →
Clean core holes drilled on scanned mark-ups in a commercial fitout

Set Up. Drill. Done.

We take pride in leaving your space exactly as we found it, minus the concrete. Our rigs are anchored or vacuum-mounted for accuracy, slurry and dust are captured at the source, and all waste is contained and removed. When we pack up, all that’s left is a perfectly cut hole beside the scanned markings.

ConcreteX technician setting up the core drill rig on a scanned slab
01
Rig Set-Up

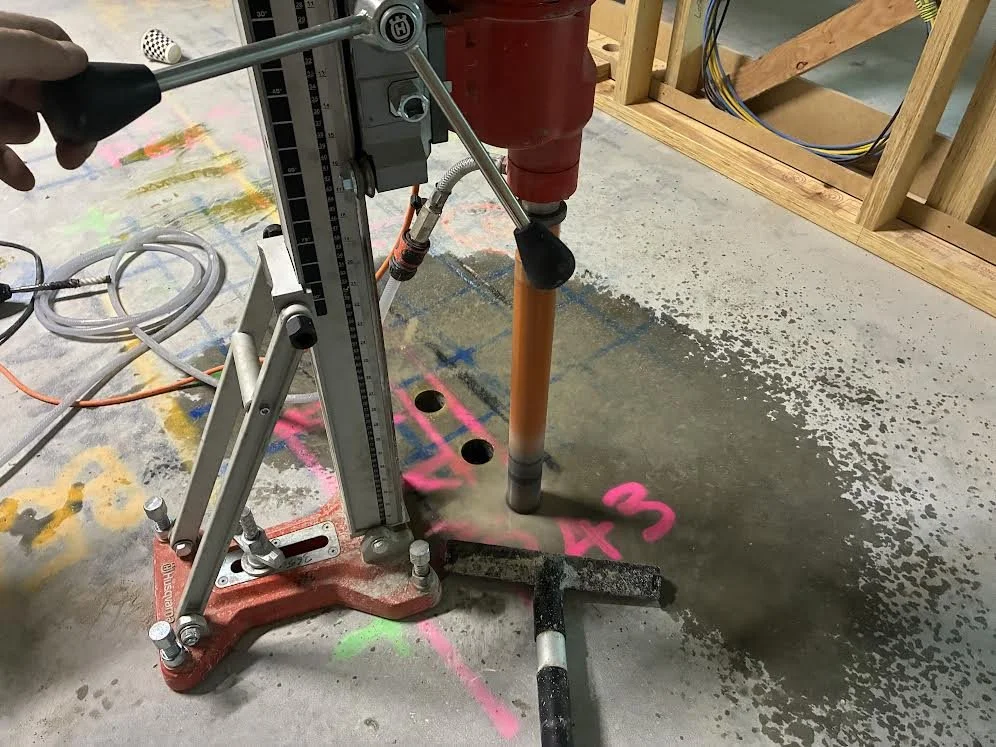

Rig-mounted core drill with vacuum slurry collection on a scanned area
02
Slurry Controlled
Plumbing pipe installed through a clean, scanned core hole
03
Clean Finish
GPR scan mark-up on a slab before core drilling

Trained to Read Concrete Scans

Our drilling technicians are trained to read our own GPR scanning marks, so nothing is lost between scan and drill. Reinforcement, post-tension cables and live services are located and marked on the slab, and we core clear of them.

View Our Scanning

Core Holes from
25 mm to 250 mm

We carry diamond core bits from 25 mm up to 250 mm diameter, covering everything from small conduit and cable holes to large stormwater and mechanical penetrations. Larger diameters are available on request. We regularly core suspended slabs up to 700 mm thick, as well as walls, beams and columns.

Floors, walls & overhead

We core vertically through slabs, horizontally through walls and columns, and overhead (inverted) where services need to come up through a soffit. Every rig is bolted or vacuum-mounted, so holes stay square and on the mark.

  • 25–52 mmElectrical conduits, data and comms cables, anchors and fixings
  • 64–102 mmPlumbing, fire services, condensate and small drainage pipes
  • 117–152 mmSewer and stormwater pipes, mechanical and refrigeration lines
  • 165–250 mmLarge drainage, exhaust and ductwork penetrations

Openings & Extractions

A single hole is just the start. Where saws can’t safely fit or operate, we drill a series of overlapping cores to form square and rectangular openings for risers, ducts and services.

Stitch drilling: overlapping core holes forming an opening

Stitch Drilling

Overlapping core holes drilled in sequence to cut out custom openings, with full control over size, shape and edge condition.

Intact concrete core extracted for laboratory testing

Core Sampling & Testing

Intact cores extracted and dispatched to accredited labs for compressive strength and integrity testing. Learn more →

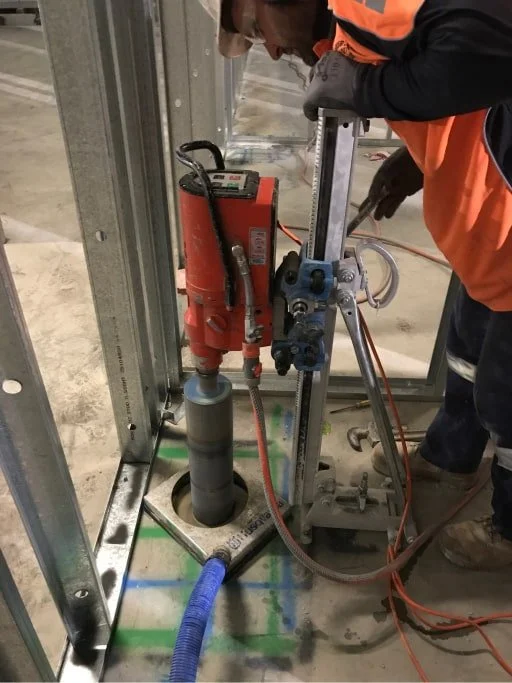

Core drilling in action on site

Where We Drill

We hold the tickets, inductions and permits to work across every site type, from live retail to government and defence assets. After-hours and weekend work is available where the program demands it.

01Commercial Fitouts & Retail
02Data Centres & Comms Rooms
03Hospitals, Schools & Police Stations
04Government & Defence Assets
05Factories, Warehouses & Industrial
06Infrastructure, Tunnels & Carparks
07Residential & Strata

Why We Scan
Before We Core

Most Sydney apartment buildings, carparks and commercial towers are built with post-tensioned (PT) slabs. Cutting a PT tendon can be dangerous, needs an engineer's repair, and can cost far more than the job itself. Hitting a live conduit or water pipe can shut down a site.

That's why every ConcreteX core hole is GPR-scanned first. We locate post-tension cables, reinforcement and services, mark them on the slab, and position each core in a clear zone. The same crew scans and drills, so nothing is lost between the scan and the hole. See how our concrete scanning works.

Safe &
Compliant

  • SWMS supplied for every job, written for your site and scope.
  • Certificates of currency for public liability, professional indemnity and workers compensation, on request.
  • Inducted and ticketed crew: working at heights, confined space and Rail Industry Worker accreditation.
  • Slurry, water and dust controlled at the source, with water vacs and hose-down for sensitive areas.
  • After-hours and weekend work for live retail, hospitals, data centres and tight programs.

Core Drilling
FAQs

How much does core drilling cost in Sydney?

It depends on the number of holes, their diameter and depth, and site conditions such as steel decking, overhead work, access and working hours. Send us your drawings or hole schedule and we'll come back quickly with a quote and availability.

What size core holes can you drill?

From 25 mm up to 250 mm diameter as standard, with larger sizes on request. We can also stitch-drill overlapping cores to form square or rectangular openings for risers and ducts.

How thick a slab can you core through?

We regularly drill slabs, walls and beams up to 700 mm thick, and deeper on request.

Do you scan before core drilling?

Yes. We GPR-scan every core location before drilling to find post-tension cables, reinforcement and services, then position each hole in a clear zone. Scanning and coring are done by the same crew, usually in the same visit.

Can you core through Bondek or metal deck slabs?

Yes. We drill through slabs on Bondek, Condek and other steel decking regularly. The deck adds drilling time, so let us know when you book and we'll allow for it in your quote.

Is core drilling messy or noisy?

Core drilling is much quieter and cleaner than sawing or jackhammering. Our rigs use water to cool the bit, and we capture the slurry with vacuums at the hole, contain all waste and remove it when we leave. It's suitable for occupied buildings, live retail and finished fit-outs.

How quickly can you start?

We can often core on the same day or the next day across Sydney metro, and we travel throughout NSW. Standard hours are 7 am to 5 pm, with after-hours, night and weekend work available.

What do you need from me to quote?

The site address, number of holes, diameters, slab or wall thickness, and drawings or photos if you have them. Tell us about access (height, parking, lifts) and whether the slab is post-tensioned or on steel decking.

Can you take cores for strength testing?

Yes. We extract intact cores and send them to accredited laboratories for compressive strength testing. See core sampling and testing.

Other Services

Core drilling is one part of what we do. ConcreteX is a NATA-accredited concrete testing and investigation company, so the same crew can scan, drill, sample and test.

Need Core Drilling in Sydney?

From a single penetration to a full fitout package, we quote clearly and turn up when we say we will. Send through your drawings or a quick description of the job and we’ll come back with pricing and availability: Sydney metro and across NSW.
